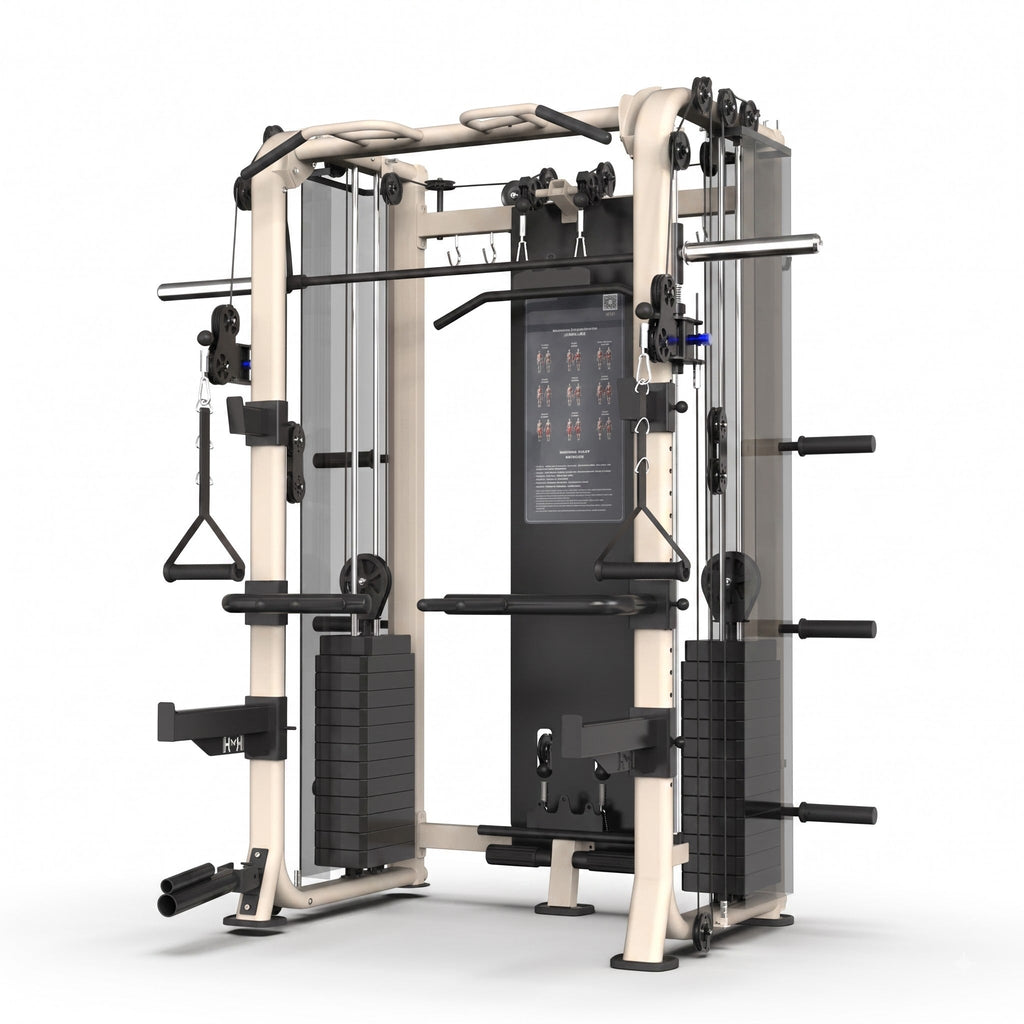

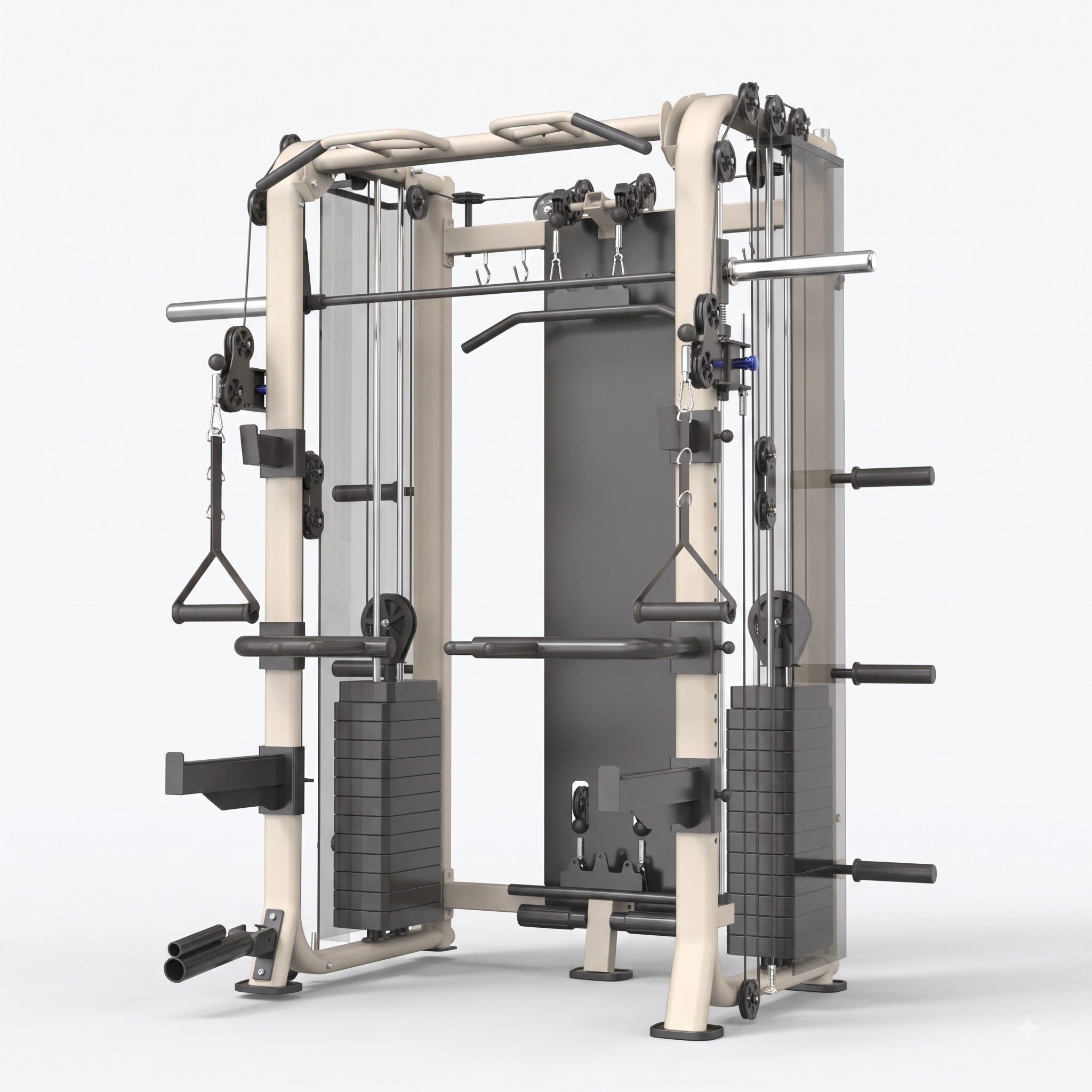

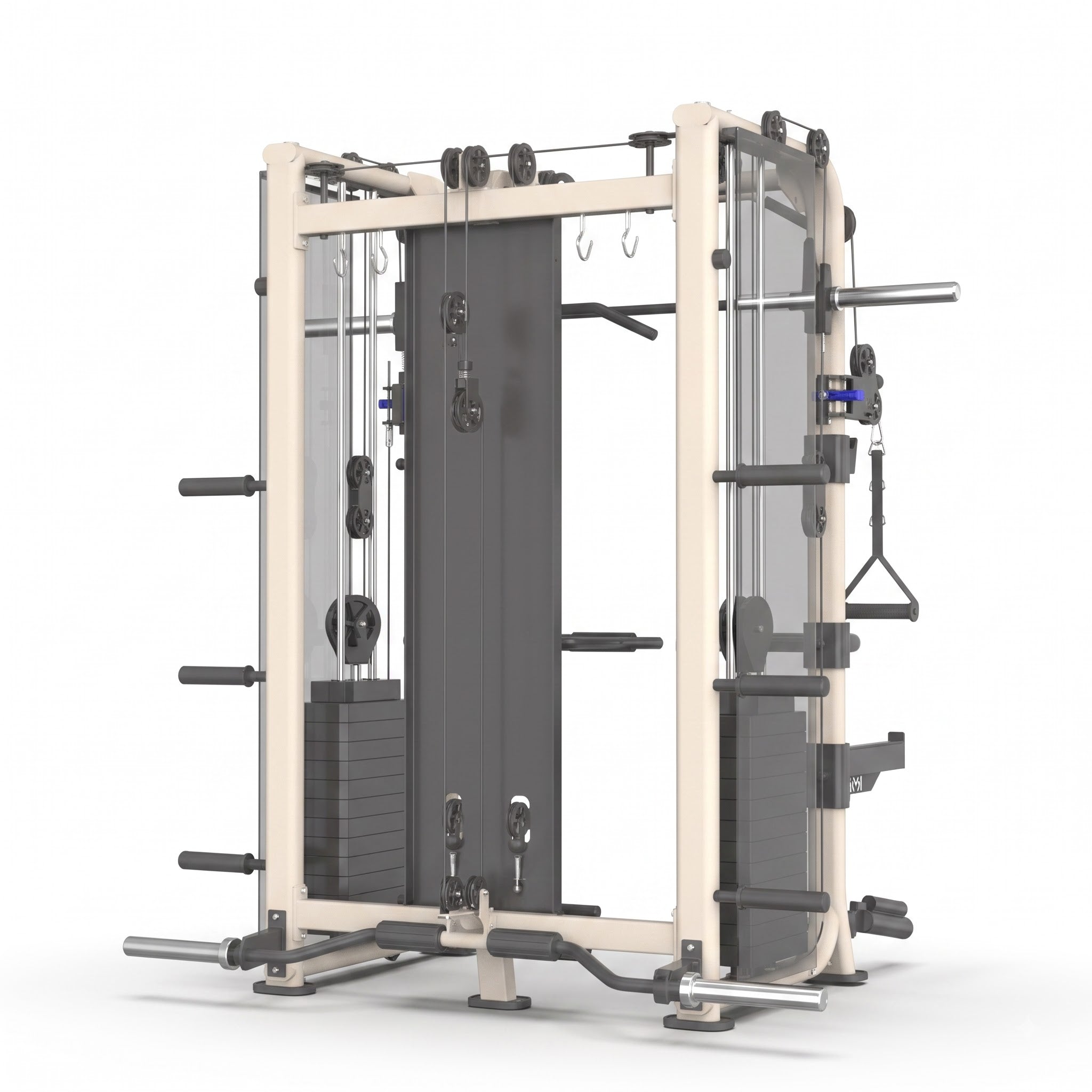

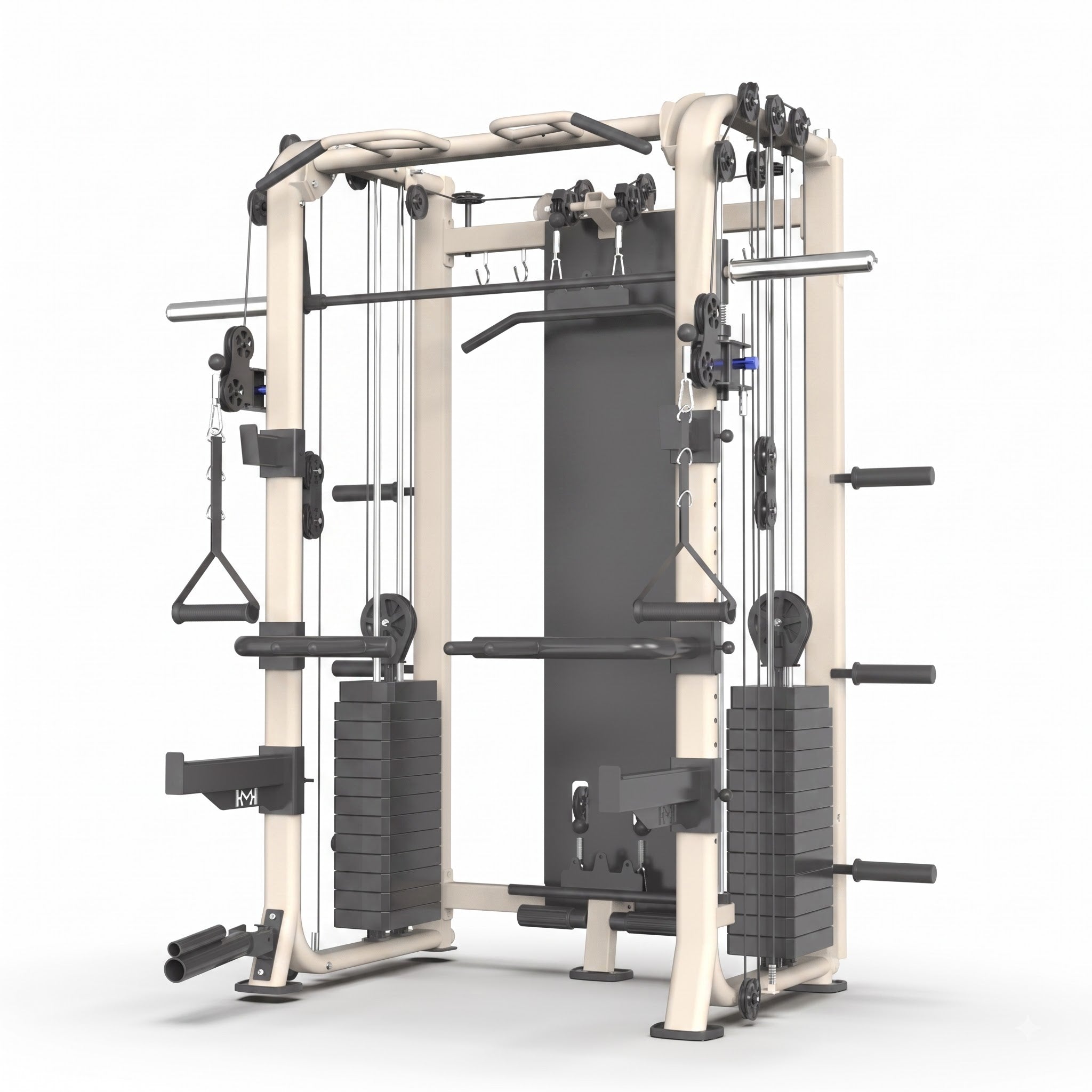

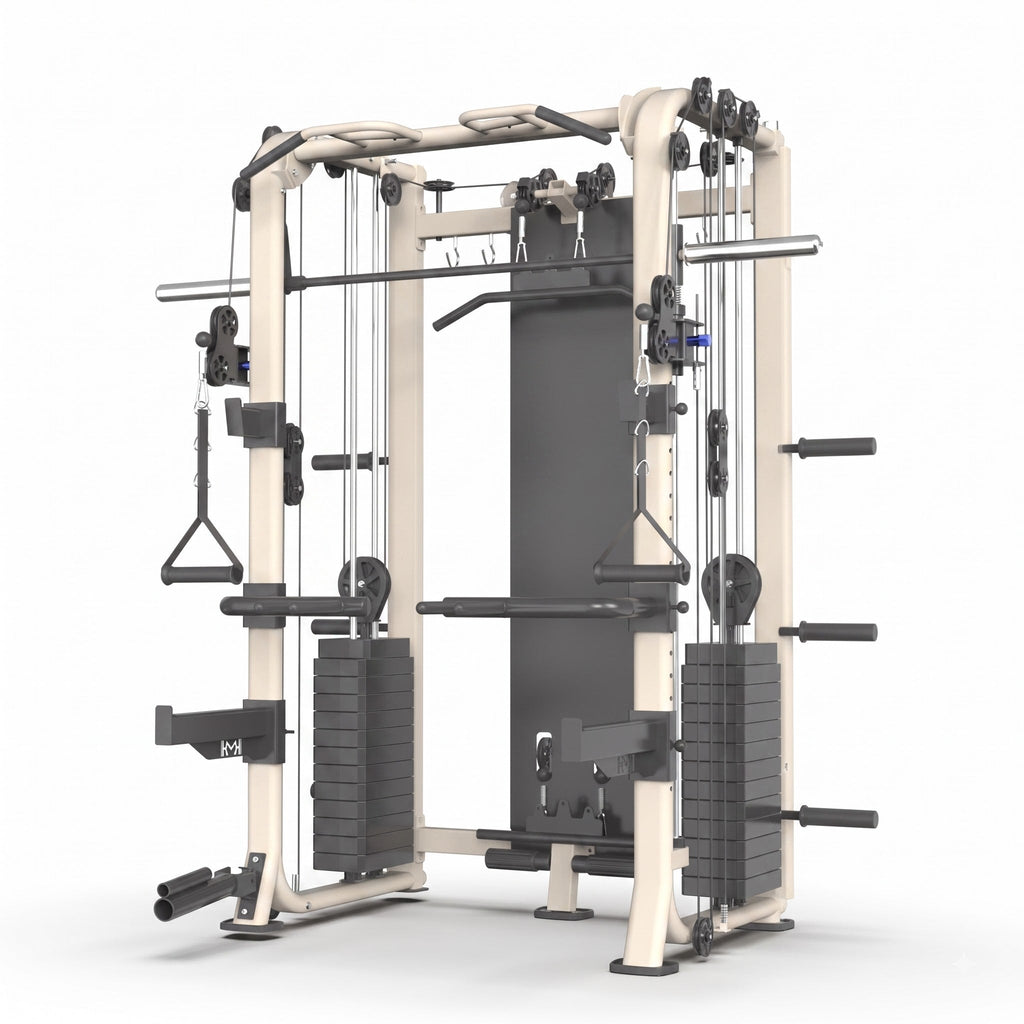

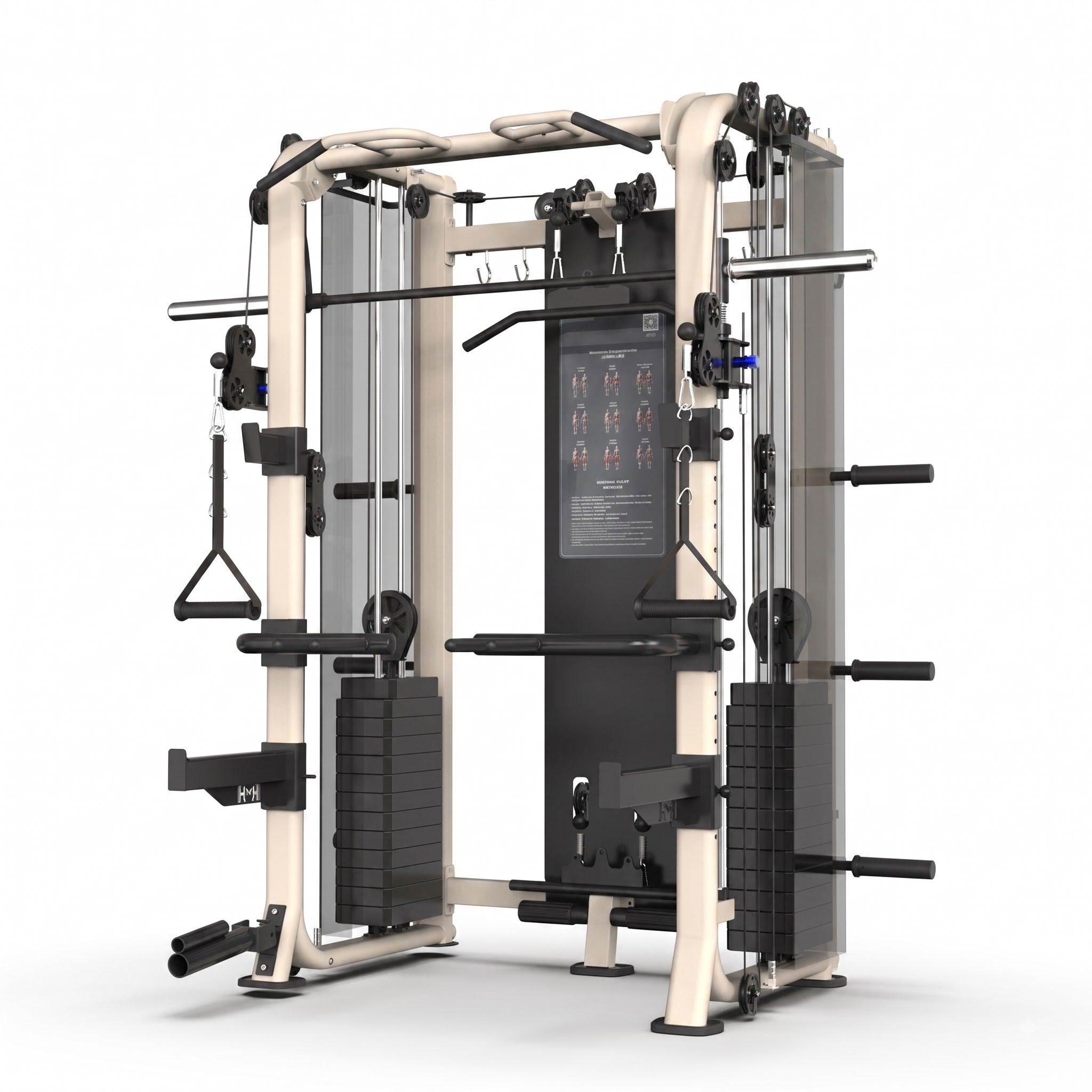

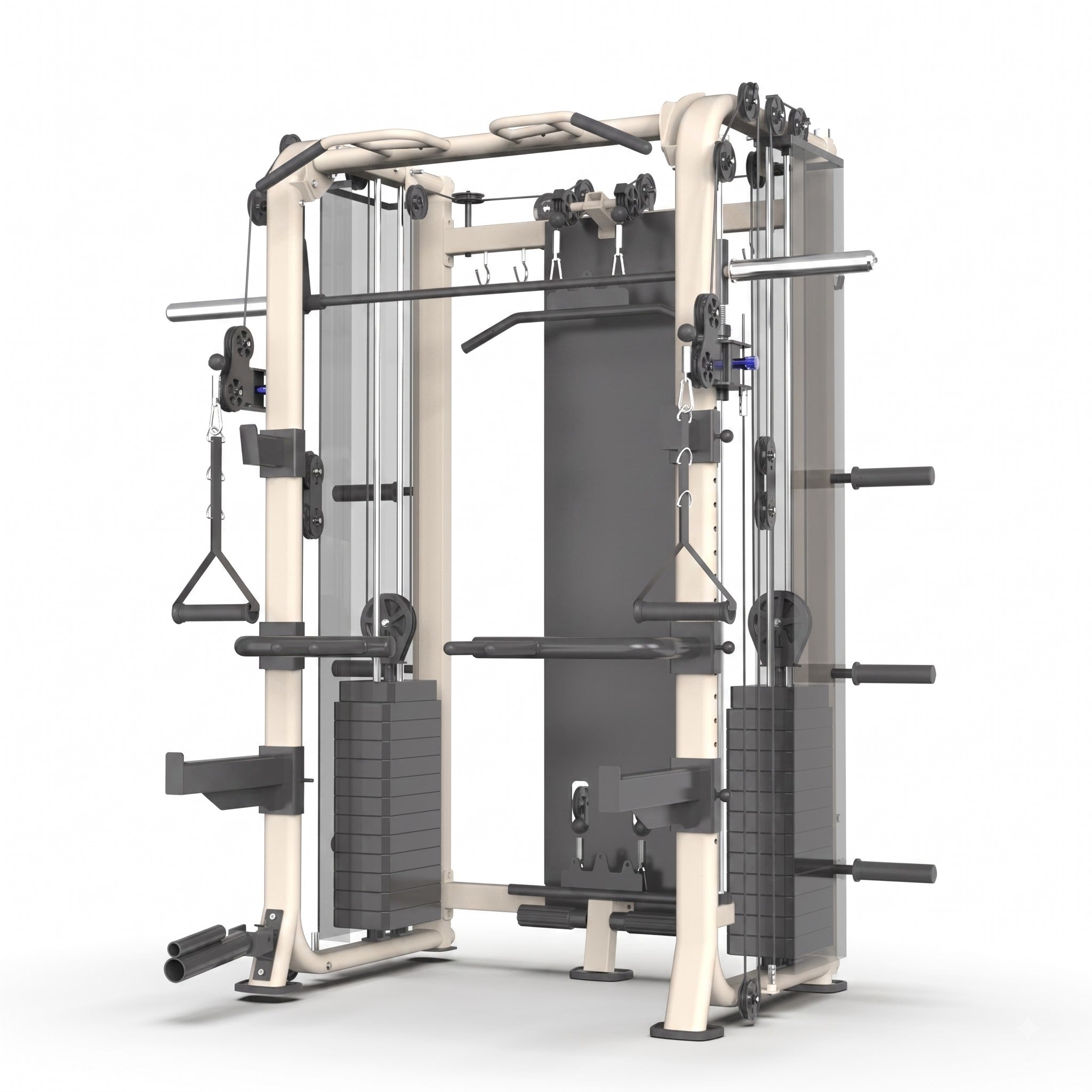

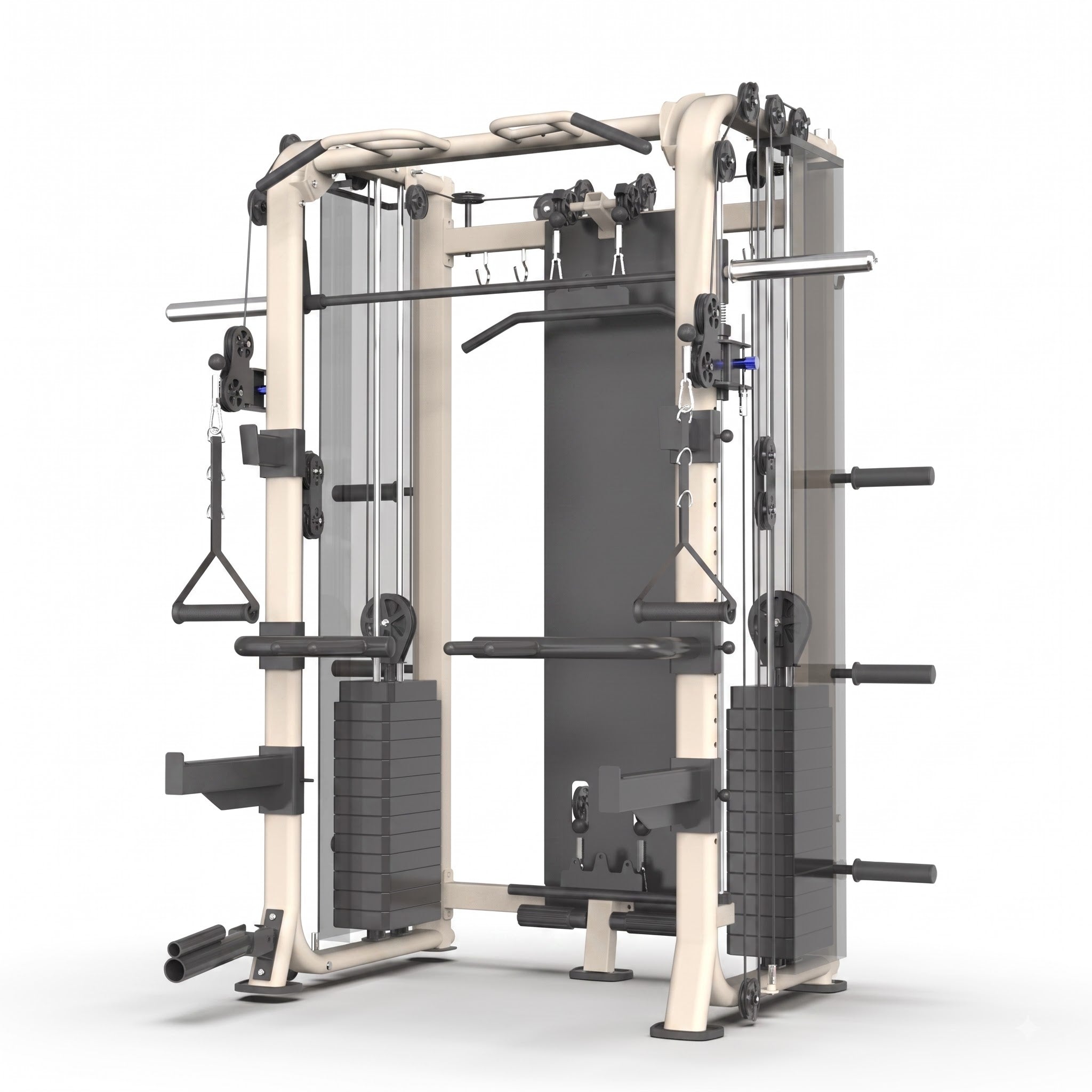

FRS Functional Trainer Smith Machine, 130kg Dual Weight Stack, Q235 Steel, Model FRS-983S

An all-in-one strength station combining a Smith machine, functional trainer, cable system and pull-up station in a single frame. Built on a Q235 carbon steel chassis with 2.0mm tubing and a 130kg dual weight stack.

At 305kg and 2.12 square metres it is a serious installation, not a piece of folding home equipment. Read the space requirements below before ordering.

Specifications

Space you need

Assembled height is 220cm. You need a minimum ceiling height of 230cm to install it, and 240cm or more if you intend to use the pull-up station.

The footprint is 197cm x 136cm. Allow roughly one metre of clear space in front and to each side to use the cable stations safely, so plan for around 4m x 3.5m of room in total.

Floor: at 305kg this needs a solid ground floor, ideally concrete. Do not install it on a suspended timber floor without advice from a structural engineer or builder.

Delivery and assembly

This item is delivered by pallet carrier to the kerbside or your front door. The delivery team cannot bring it inside, carry it upstairs, or assemble it. You will need at least two people and a sack truck to move it into position.

Assembly takes [TBC] hours with two people. Tools required beyond those supplied: [TBC].

Warranty

Two years from delivery against manufacturing defects and failure in normal use. Commercial and club use is excluded unless separately agreed. Full terms on our Returns & Refunds page. This is in addition to your legal rights, not instead of them.
